CNC Drilling Machine

• Automatic
• Other, Fully automatic operation

• Axial Choice
• Multiple axes (X, Y, Z as per model)

• Bar Feeder
• Other, Included

• Capacity
• Cutting width 1000-1250 mm (model DJ1000-DJ1250)

• Color
• Other, Blue & Black (standard model color)

• Computerized
• Yes

• Dimension (L*W*H)
• Customizable; typical model size approx. 900032003200mm

• Feature
• Other, Fully automatic, CNC controlled, automatic feeding, high precision

• General Use
• Heavy-duty metal cutting, H beam, steel, and profile processing

• Material
• Other, Cast iron & steel structure

• Motor
• Other, High-performance industrial motor

• PLC Control
• Other, Available (Siemens/Delta as per customer)

• Power Consumption
• Depends on configuration (consult manufacturer)

• Power Source
• Electric

• Product Type
• CNC Band Sawing Machine

• Rigidity
• Other, High rigidity structure for heavy-duty cutting

• Spindle Speed
• Variable, CNC programmable

• Table Size
• Large size suitable for beams/pipes (ask for detailed specs)

• Type
• Other, Automatic CNC Band Saw

• Voltage
• 380V/415V, 3-phase, 50/60Hz

• Weight (kg)
• Approx. 18,000 - 22,000 kg (model dependent)

• Automatic
• Other, Fully Automatic

• Axial Choice
• X/Y/Z Axis

• Bar Feeder
• No

• Capacity
• 500 kg Table Load

• Color
• Other, Gray/Orange

• Computerized
• Yes

• Dimension (L*W*H)
• 2550 mm x 2000 mm x 2500 mm

• Feature
• Other, Precision Machining, Rigid Structure, High Speed

• General Use
• Metal & Parts Processing

• Material
• Other, Cast Iron

• Motor
• Other, Main Spindle Motor: 7.5/11 kW

• PLC Control
• Yes

• Power Consumption
• 13 kW

• Power Source
• Electric

• Product Type
• CNC Machining Center

• Rigidity
• Other, High Rigidity Construction

• Spindle Speed
• 8000-12000 rpm

• Table Size
• 1000 mm x 550 mm

• Type
• Other, Vertical Machining Center

• Voltage
• 380V / 50Hz

• Weight (kg)
• 5800 kg

• Automatic
• Yes

• Axial Choice
• 3 Axis (X/Y/Z)

• Bar Feeder
• Other, Not Included

• Capacity
• Drilling capacity up to 50 mm diameter

• Color
• Other, Blue & Gray

• Computerized
• Yes

• Dimension (L*W*H)
• Approx. 4000 x 2500 x 2500 mm

• Feature
• Other, High Precision, Hydraulic Clamps, Heavy-Duty Construction

• General Use
• Metal Plate Drilling, Industrial Manufacturing

• Material
• Other, Mild Steel / Alloy Steel

• Motor
• Other, High-performance servo motor

• PLC Control
• Yes

• Power Consumption
• Approx. 12-15 kW

• Power Source
• Electric

• Product Type

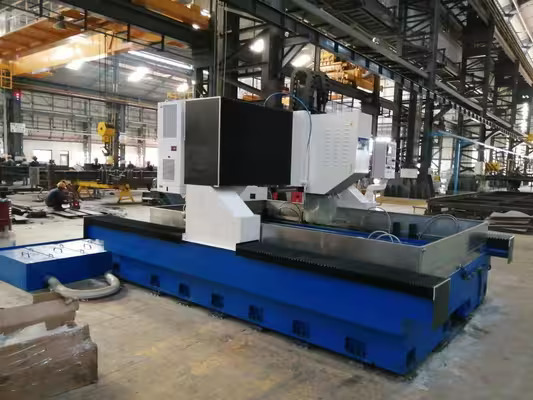

• CNC High Speed Drilling Machine (With Hydraulic Clamps)

• Rigidity
• High

• Spindle Speed
• Up to 3000 rpm

• Table Size
• 2000 x 1000 mm (customizable)

• Type
• Other, CNC Drilling Machine

• Voltage
• 380V/415V

• Weight (kg)
• Approx. 4500 kg

• Automatic
• Other, Fully Automatic

• Axial Choice
• 3 Axis (X, Y, Z)

• Bar Feeder
• Other, Not Equipped

• Capacity
• Up to 50 mm Drilling Diameter

• Color
• Other, Black & White

• Computerized
• Yes

• Dimension (L*W*H)
• Approx. 7600mm x 3200mm x 2800mm

• Feature
• Other, High Speed Drilling, Precise Positioning, Multi-spindle Option

• General Use
• Tube Sheet Drilling in Heat Exchanger Manufacturing, Boilermaking, Petrochemical Industry

• Material
• Other, Cast Iron Base; Suitable for Drilling in CS/SS/Copper

• Motor
• Other, AC Servo Motor

• PLC Control
• Yes

• Power Consumption
• High Efficiency, varies by model

• Power Source
• Electric

• Product Type
• CNC Drilling Machine for Tube Sheet

• Rigidity
• Other, Heavy Duty Construction

• Spindle Speed
• Up to 3000 rpm

• Table Size
• Customizable as per tube sheet size

• Type
• Other, High Speed CNC Drilling Machine

• Voltage
• 380V/415V, 50/60Hz

• Weight (kg)
• Approx. 12000 kg
