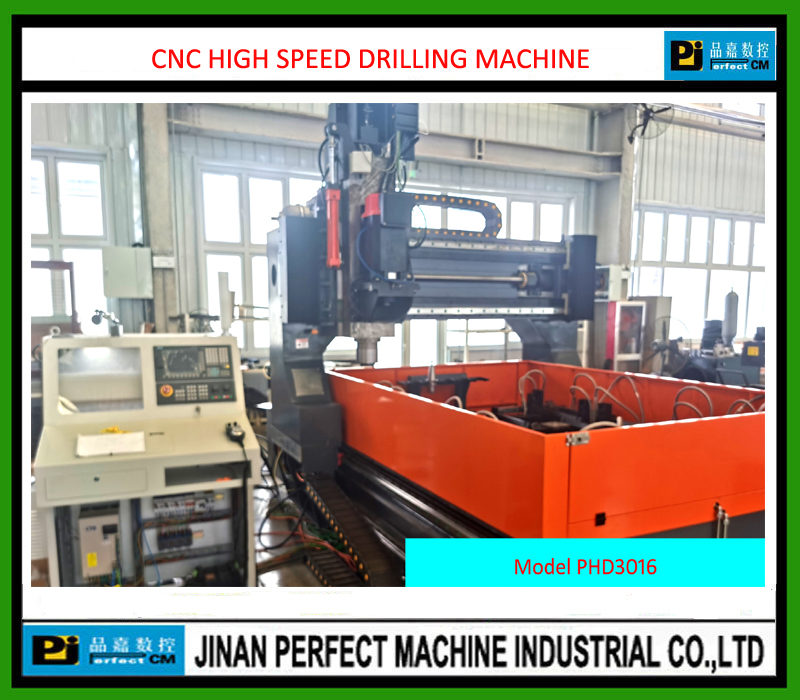

High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series)

Send Inquiry

Request To Call Back

High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series)

Get a Price/Quote

MOQ : 1 Unit

High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series) Specification

Product Type
CNC Drilling Machine for Tube Sheet

General Use
Tube Sheet Drilling in Heat Exchanger Manufacturing, Boilermaking, Petrochemical Industry

Material
Cast Iron Base; Suitable for Drilling in CS/SS/Copper

Type
High Speed CNC Drilling Machine

Capacity
Up to 50 mm Drilling Diameter

Weight (kg)
Approx. 12000 kg

Computerized
Yes

Automatic
Fully Automatic

PLC Control
Yes

Bar Feeder
Not Equipped

Power Source
Electric

Power Consumption
High Efficiency, varies by model

Rigidity
Heavy Duty Construction

Voltage
380V/415V, 50/60Hz

Motor
AC Servo Motor

Table Size
Customizable as per tube sheet size

Spindle Speed
Up to 3000 rpm

Axial Choice
3 Axis (X, Y, Z)

Dimension (L*W*H)
Approx. 7600mm x 3200mm x 2800mm

Feature
High Speed Drilling, Precise Positioning, Multi-spindle Option

Color
Black & White

Noise Level
<80 dB

Lubrication
Automatic Lubrication System

Cooling System
Flood Coolant with High Pressure Pump

Control System
Siemens/Fanuc CNC Controller

Chuck Type
Hydraulic Chuck

Installation Service
Available Onsite

Drilling Accuracy
0.05 mm

Clamping System
Hydraulic Clamping

Interface
USB/Ethernet for CNC Program Loading

Safety Features
Emergency Stop, Safety Guards

Max. Workpiece Thickness
Up to 200 mm

Tool Change System
Automatic Tool Changer (ATC) Available

Programming Language
G-code Compatible

High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series) Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
5-7

Main Domestic Market
All India

About High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series)

Discover the preeminent High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series), a peerless choice for precision. Engineered with a robust cast iron base and state-of-the-art Siemens/Fanuc CNC controllers, it offers drilling accuracy down to 0.05 mm. An Automatic Tool Changer (ATC), flood coolant system, and hydraulic chucks ensure flawless operation. Its masterpiece engineering delivers high-speed, precise positioning and exceptional durability at the lowest price, thanks to an exclusive price cut offer. Enjoy seamless G-code programming via USB/Ethernet, with heavy-duty clamping and automated lubrication, making it the preferred solution for tube sheet drilling in heat exchangers, boilermaking, and the petrochemical sector. Fully automatic and customizable, with installation services available onsite.

Versatile Applications & Advanced Features

The Model PHD Series excels not only in tube sheet drilling but also adapts seamlessly to specialized applications in heat exchangers and petrochemical equipment manufacturing. Its fully automatic operation and multi-spindle options allow for high efficiency in large-scale production environments. The high-pressure coolant system, hydraulic clamping, and customizable worktable size enhance versatility, making it suitable for materials like CS, SS, and copper. Application is straightforward-load your CNC program, secure your workpiece, and let this masterpiece deliver impeccable results.

Sample Availability, Rapid Rate & Certified Supply

Sample demonstrations of the Model PHD Series are available on request, supporting informed order processing for buyers. With a high supply ability backed by robust logistics and local installation service, manufacturers and suppliers can rely on prompt delivery. Certified by renowned authorities, the machine upholds international standards. Our streamlined ordering process ensures every client gets their machine at the quoted rate with minimal downtime, making procurement efficient and transparent from start to finish.

FAQ's of High Speed CNC Drilling Machine for Tube Sheet (Model PHD Series):

Q: How does the CNC Drilling Machine ensure high drilling accuracy?

A: The machine features heavy-duty construction, advanced AC servo motors, and state-of-the-art Siemens/Fanuc controllers, enabling drilling accuracy down to 0.05 mm. Its hydraulic clamping system and stable cast iron base further provide consistent precision.

Q: What special features distinguish the Model PHD Series from other CNC drilling machines?

A: Distinctive features include an automatic tool changer (ATC), flood coolant with a high-pressure pump, hydraulic chuck, customizable table size, and peerless noise reduction (<80 dB), making it a standout solution for rigorous tube sheet drilling.

Q: When is installation service available for this machine?

A: Onsite installation services are available promptly after order confirmation, with flexible timing coordinated through our logistics team to suit your schedule.

Q: Where can the Model PHD Series be used most effectively?

A: It is optimized for tube sheet drilling in industries such as heat exchanger manufacturing, boiler production, and the petrochemical sector, and is adaptable for other high-precision drilling applications.

Q: What is the process for programming and operating the CNC Drilling Machine?

A: Programming is G-code compatible and can be loaded via USB or Ethernet. The operation is fully automatic-secure the workpiece, select the program, and the machine manages drilling, tool changes, lubrication, and safety protocols autonomously.

Q: How does the automatic tool changing system enhance usage efficiency?

A: The ATC allows the machine to switch between tools without manual intervention, drastically reducing downtime between operations and maximizing productivity in high-volume production environments.

Q: What are the key benefits of choosing this CNC machine from this exporter and supplier?

A: In addition to its world-class features, customers benefit from the lowest price offers, certified quality, outstanding supply rates, comprehensive installation services, and responsive after-sales support.
